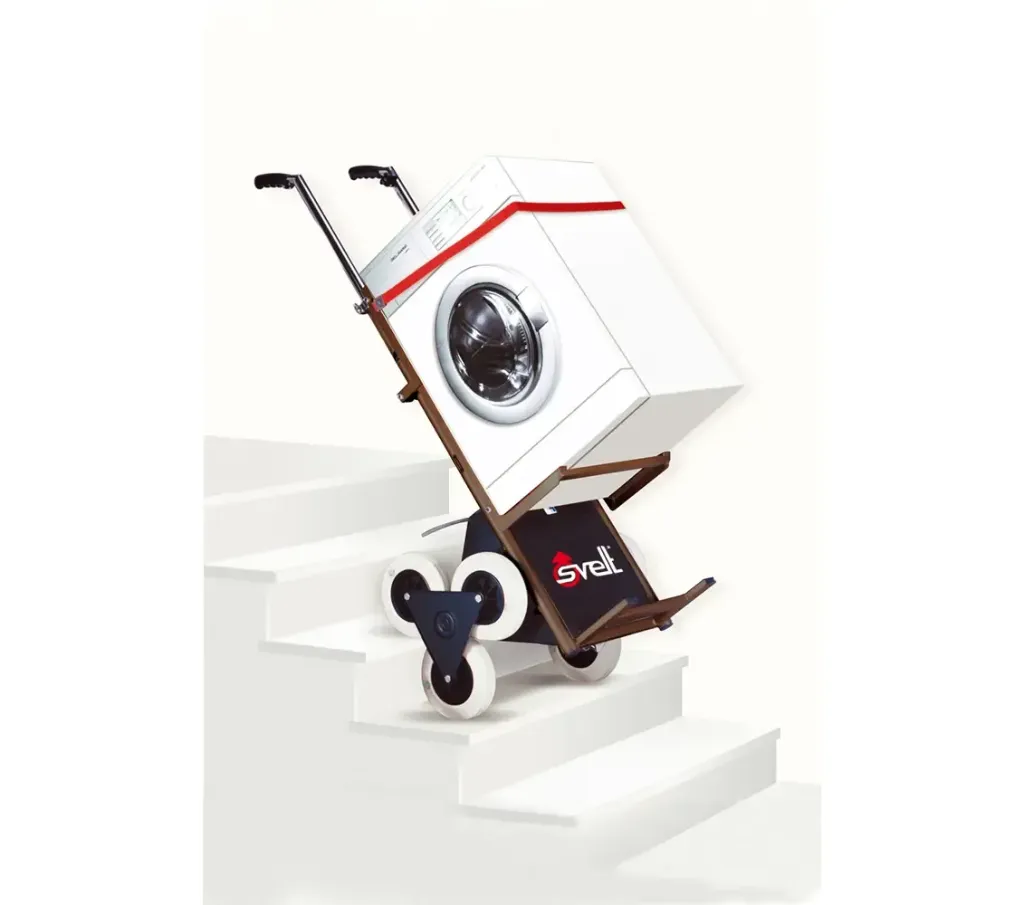

SVELT Heavy-Duty Electric Stair-Climbing Hand Truck – 160 kg

Electric Heavy Duty stair climber – 160 kg

Transport heavy and bulky goods safely and with minimal effort over almost any staircase. This professional electric stair climber with star wheels is suitable for loads up to 160 kg. Ideal for transporting white goods, doors, frames, cabinets, vending machines and other heavy objects.

The electric drive takes the heavy work out of your hands. The user does not need to push the load up, hold it down or lift it themselves. One person can control the stair climber. This reduces physical strain and decreases the risk of back problems and workplace accidents.

Safe and efficient heavy transport

The powerful electric motor drives the star wheels, allowing the stair climber to move up or down step by step. The electronic control keeps the speed constant, regardless of the weight being transported.

Thanks to its compact dimensions and small turning circle, the stair climber is also suitable for use in narrow corridors and limited spaces. It can be used on straight stairs, spiral stairs, and compact stairs with alternating steps.

This electric stair climber – also known as an electric stair walker – has been developed, built, and tested in Italy. The machine complies with the European Machinery Directive and is equipped with CE marking. More than 10,000 units are already in use worldwide.

Suitable for

White goods stores and delivery services
Moving companies
Installers of doors and frames
Suppliers of security doors
Couriers and transport companies
Suppliers of vending machines
Installers of heavy cabinets and equipment
Professionals who regularly transport heavy goods up stairs

Simple operation

Place the load on the stair climber and secure it firmly with the included strap. Then, use the controls on the handle to choose up or down. The electric motor takes over the heavy transport, while the user guides the machine with minimal effort.

The telescopic handles are adjustable from 110 to 220 cm. This makes the stair climber suitable for both low, heavy loads and high cabinets, doors, and other long products.

Standard equipment

Electric controls for up and down on the handles
Telescopic, height-adjustable guiding handles
Central on-off button
Wear-resistant and floor-protecting star wheels
Chain drive with reduction gearbox
Hardened steel gears
Tilt support to place the load horizontally
Front wheels for an extra small turning circle
Strap for securely fastening the load

Advanced safety features

The stair climber is equipped with various automatic safety devices:
Wheel lock in case of a drive belt breakage
Automatically activated electromagnetic safety brake
Tilt sensor that stops the descent when the risk of tipping becomes too great
Step sensor that stops the machine when insufficient support is detected under the wheel

Technical specifications

Technical specification	Execution
Maximum load capacity	160 kg
Minimum height	110 cm
Maximum height	220 cm
Width	56 cm
Own weight	48 kg
Minimum step height	4 cm
Maximum step height	20 cm
Minimum step depth	15 cm
Climbing speed	Approximately 4 seconds per step
Motor	12 V DC – 150 W
Battery	12 V – 33 Ah
Maximum range	Up to approximately 3,000 steps
Battery charger	230 V AC – 50 Hz – 0.5 A
Transport dimensions	110 × 56 cm
Maximum load capacity	160 kg

Available accessories

Lifting platform with hand winch

Extra chassis with lifting platform and manual winch for the balanced transport of washing machines and other low, heavy loads. The chassis raises the centre of gravity of the load, thereby reducing the tipping effect during stair transport. The frame can be assembled in about ten minutes.

Transport frame for doors and frames
Suitable for transporting security doors, standard doors and frames.
Item code: CARSALISCEINSP
Loading ramps for vehicles
For loading and unloading the stair climber:
Version with 5 steps – CARSALISCEINSC5
Version with 7 steps – CARSALISCEINSC7

Compact version

Compact model with a raised centre of gravity for easier transport of low, heavy loads, such as washing machines and bags of cement.

Item code: CARSALISCEINC

Safety strap

Extra safety strap with attachment hooks for securely fastening the load to the frame.

Professional transport without unnecessary strain

The electric Heavy Duty stair climber enables the transport of heavy goods more quickly, safely, and with significantly less physical effort up stairs. A practical investment for any organisation that wants to protect employees and carry out heavy transport more efficiently.
